High-Speed destruction : Can Crushing

Movie : can1.m1v (1.3MB)

Aluminium can, using coil made of 3mm copper rod, sleeved in polythene tube. Power around 1.5KJ.
Probably 1000 frames/sec - we were messing with external sync & can't be sure....!



Before

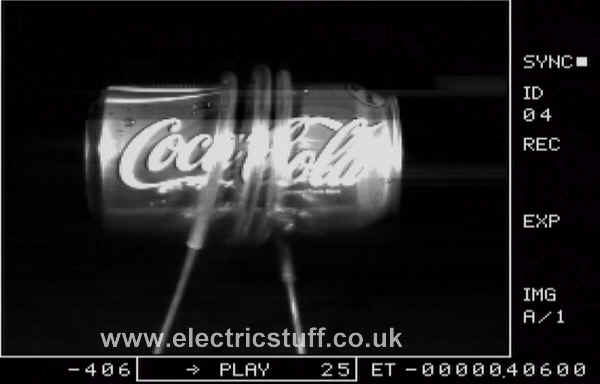

Dark band visible, probably due to magnetic field interfering with camera. Slight crushing starting to become visible at bottom of can.wpe58.jpg (18499 bytes)

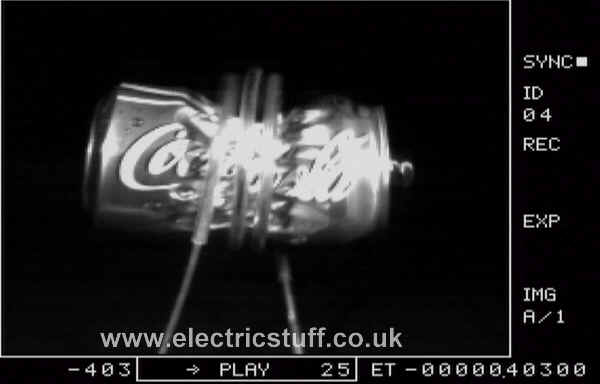

1ms later - coil has pinched together and can-crush is pretty much complete

Crush spreads out - probably due to springiness of can

Coil starts to recover shape, can now pretty stable





Movie : lpcan_4k.m1v (92K)

(Probably) 4000 frames per second...!

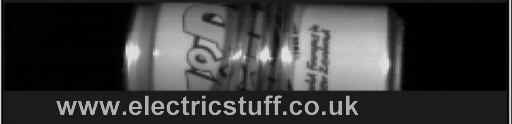

Some interesting rippling effects can be seen at the ends of the can in the movie.






Indirect crushing by smashing a hard-disc platter into the can.1000 frames/sec.

Movie : discintocan.m1v (7MB).

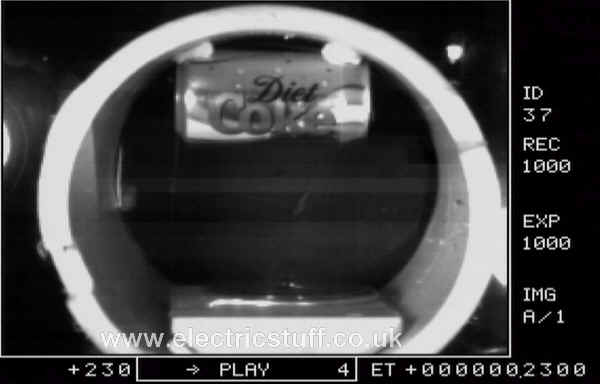

Initial state - again you can see the horinzontal bars from the interference to the camera

Where's the disc gone...? You can just see the blur


Disc meets can...

Disc bends round can
