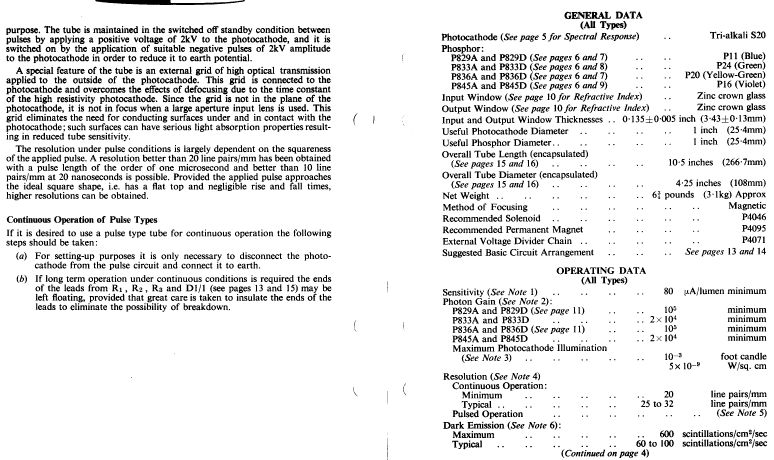

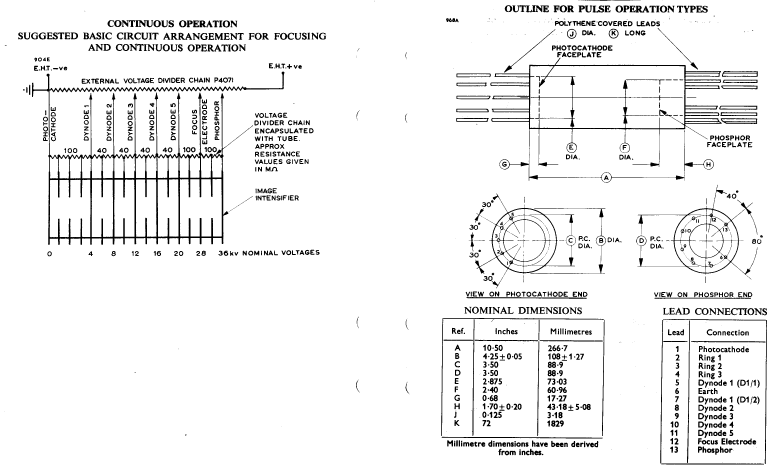

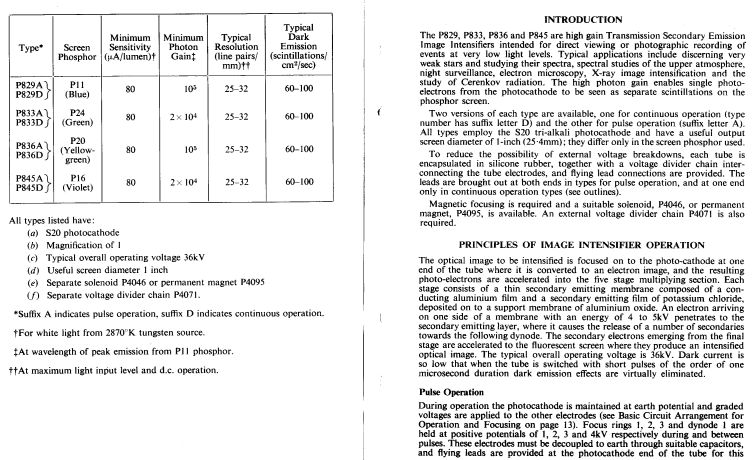

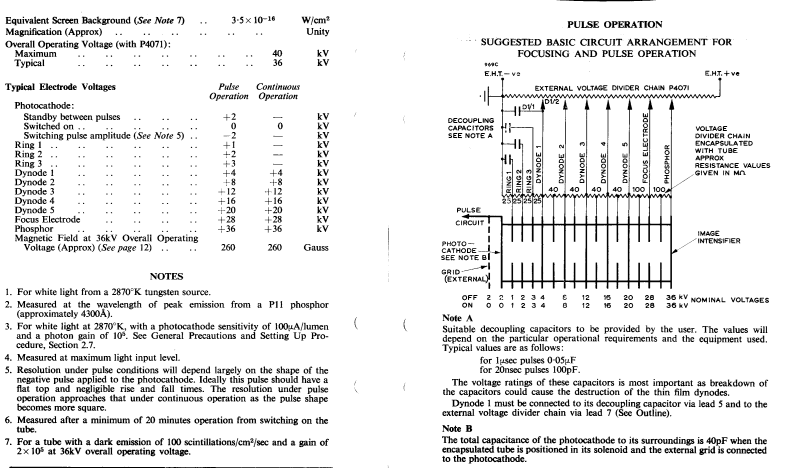

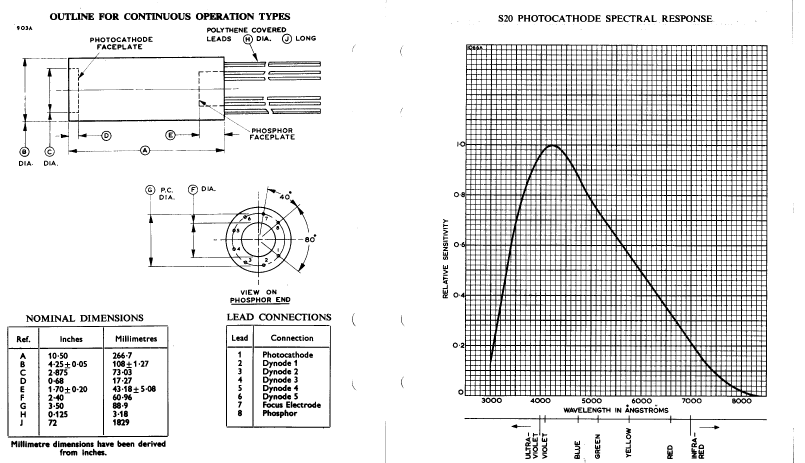

EEV P828/833/836/845 Image intensifier tubes

(Model number indicates phosphor colour - P11 Blue, P24 Green, P29 Yellow-green, P16 Violet)
