Newest pics are at the top of this page. If you want to see and hear a tesla coil running, check out the AVI movies on the UK Winter 99 Teslathon page

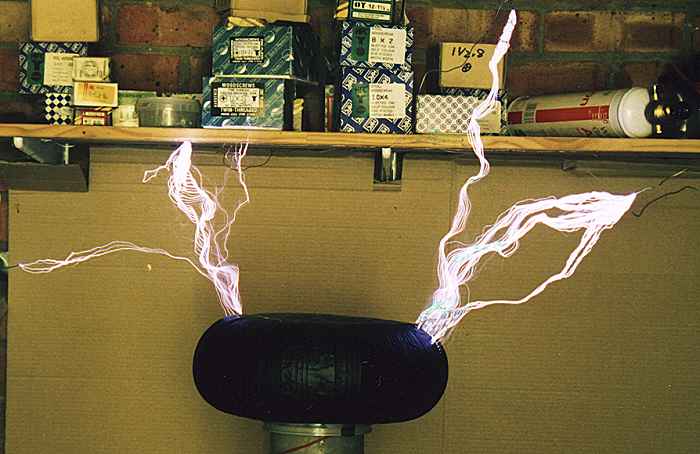

spark2.jpg (36735 bytes)I had a lot of trouble getting the exposure right due to the light source reflecting off the toroid, so I sprayed it black!

Sparks up to about 18"

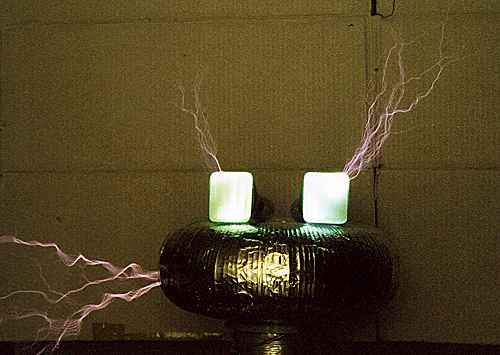

crt1.jpg (18164 bytes)A couple of old oscilloscope tubes lighting up on the coil.

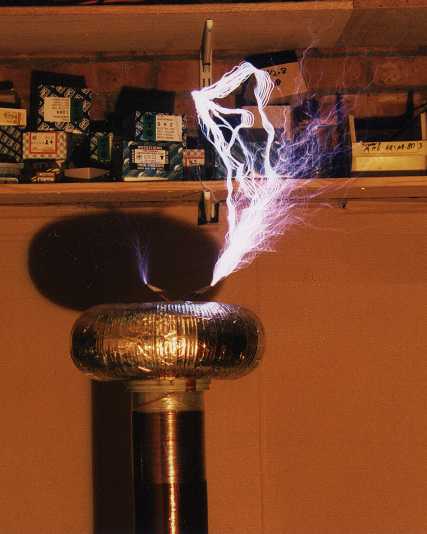

coil1.jpg (21810 bytes)Corona streamers from a couple of knife blades.

The red hue is the result of using an incandescent lamp for illumination.
